Compact Design & Robust Quality Passive Component
Nyscom’s telecom passive components provide compact design, high and robust quality for both indoor & outdoor application even in the harsh environment including the industrial plant like oil & gas, power & water desalination, petrochemical, etc. with all ranges including the wall mount, cabinet mount, rack mount and underground. With 24 hours support, Nyscom Technology is here to help.
DIN Rail Fiber Optic Patch Panel
Features:
- Compact Design
- SC, LC, ST & FC Adapter
- Direct Termination
- Fusion Splicing
- High Quality Anodized Aluminum
- Light Grey Color
- Space Saving Installation
- DIN Rail Mountable
- Up to 12 Core Fiber
- 3 and 6 Duplex Adapter

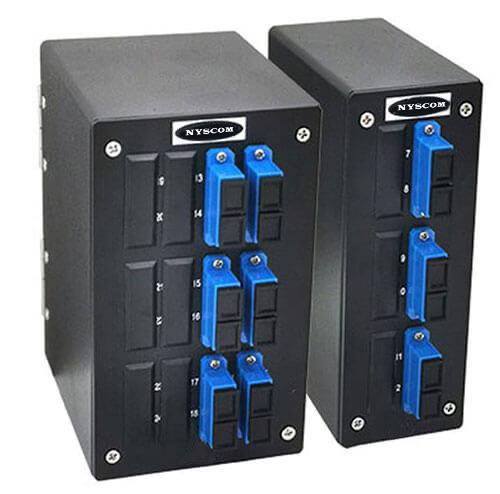

DIN Rail Fiber Optic Patch Panel
Features:
- Compact Design
- SC, LC, ST & FC Adapter
- Direct Termination
- Fusion Splicing
- High Quality Anodized Aluminum
- Black Color
- Space Saving Installation
- DIN Rail Mountable
- Up to 48 Core Fiber
- Up to 12 SC Duplex and Up to 12 LC Quad Duplex Adapter
Wall Mount Fiber Optic Patch Panel
Features:
- Compact Design
- Lockable System
- Wall Mountable
- Up to 24 Core Fiber
- 3, 6 and 12 Duplex Adapter
- SC, LC, ST & FC Adapter
- Single and Multimode
- Direct Termination
- Fusion Splicing
- Cold Rolled Steel Sheet
- Light Grey Color
Rack Mount Fiber Optic Patch Panel
Features:
- Compact Design
- Innovative & Robust Design
- Unique Slide for easy use
- 19” 1U Rack Mountable
- Up to 48 Core Fiber
- 6, 12 and 24 Duplex Adapter
- SC, LC, ST & FC Adapter
- Single and Multimode
- Direct Termination
- Fusion Splicing
- Cold Rolled Steel Sheet
- Black Color
Single Mode Fiber Optic Patch Cord
Features:
- LSZH Jacket
- Duplex and Simplex versions
- Single Mode
- Connector type SC-SC, LC-LC & SC-LC,
- ST-ST & FC-FC
- Available in 1m, 2m, 3m, 5m, 10m, 15m, 20m & 25m
- RoHS Certified
- Conformance to ANSI/TIA-568.3-D, ITU-T G.657.A1, IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1.
- Meets IEC-60332 (LSZH), IEC 60754-1 and ASTM 2843/ IEC 61034-1 flame rating for standard safety compliant
Multimode Fiber Optic Patch Cord
Features:
- LSZH Jacket
- Duplex and Simplex versions
- Multimode
- Connector type SC-SC, LC-LC & SC-LC,
- ST-ST & FC-FC
- Available in 1m, 2m, 3m, 5m, 10m, 15m, 20m & 25m
- RoHS Certified
- Conformance to ANSI/TIA-568.3-D, ITU-T G.657.A1, IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1.
- Meets IEC-60332 (LSZH), IEC 60754-1 and ASTM 2843/ IEC 61034-1 flame rating for standard safety compliant
Single Mode Fiber Optic Pigtail
Features:
- LSZH Jacket
- Simplex versions
- Single Mode
- Connector type SC-SC, LC-LC & SC-LC,
- ST-ST & FC-FC
- Available in 1m, 2m & 3m
- RoHS Certified
- Conformance to ANSI/TIA-568.3-D, ITU-T G.657.A1, IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1.
- Meets IEC-60332 (LSZH), IEC 60754-1 and ASTM 2843/ IEC 61034-1 flame rating for standard safety compliant
Multimode Fiber Optic Pigtail
Features:
- LSZH Jacket
- Simplex versions
- Multimode
- Connector type SC-SC, LC-LC & SC-LC,
- ST-ST & FC-FC
- Available in 1m, 2m & 3m
- RoHS Certified
- Conformance to ANSI/TIA-568.3-D, ITU-T G.657.A1, IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1.
- Meets IEC-60332 (LSZH), IEC 60754-1 and ASTM 2843/ IEC 61034-1 flame rating for standard safety compliant
CAT 6 UTP Patch Panel
Features:
- Strain Relief
- Built-in Wire Manager
- Snap-in Type
- 19” Rack Mountable 1U 24 Ports
- Fast and Reliable Installation
- Universal wiring – T568 A or B wiring pattern
- ANSI/TIA-568.2-D
- ETL Verified
- UL Verified
- Metal SPCC
- Black Color
CAT 6 STP Patch Panel
Features:
- Strain Relief
- Built-in Wire Manager
- Snap-in Type
- 19” Rack Mountable 1U 24 Ports
- Fast and Reliable Installation
- Universal wiring – T568 A or B wiring pattern
- ANSI/TIA-568.2-D
- ETL Verified
- UL Verified
- Metal SPCC
- Black Color
CAT 6A UTP Patch Panel
Features:
- Strain Relief
- Built-in Wire Manager
- Snap-in Type
- 19” Rack Mountable 1U 24 Ports
- Fast and Reliable Installation
- Universal wiring – T568 A or B wiring pattern
- ANSI/TIA-568.2-D
- ETL Verified
- UL Verified
- Metal SPCC
- Black Color
CAT 6A STP Patch Panel
Features:
- Strain Relief
- Built-in Wire Manager
- Snap-in Type
- 19” Rack Mountable 1U 24 Ports
- Fast and Reliable Installation
- Universal wiring – T568 A or B wiring pattern
- ANSI/TIA-568.2-D
- ETL Verified
- UL Verified
- Metal SPCC
- Black Color
CAT 6 UTP Patch Cord
Category 6 UTP Flat Patch cords are manufactured using high quality un-shielded 4 Pair Stranded cable. These high performance components available in broad range of lengths. They are designed to meet or exceed Cat6 specifications. Conductors are securely mated with unshielded RJ45 plug design to deliver superior performance
CAT 6 STP Patch Cord
Category 6 STP Flat Patch cords are manufactured using high quality un-shielded 4 Pair Stranded cable. These high performance components available in broad range of lengths. They are designed to meet or exceed Cat6 specifications. Conductors are securely mated with unshielded RJ45 plug design to deliver superior performance
CAT 6A SFTP Patch Cord
High Speed 10 Gigabit SFTP Patch Cable Grey, LSZH, C6A delivers optimal transmission and networking performance with reduced insertion loss and Alien Crosstalk. They are high performance components available in broad range of lengths and designed to meet or exceed all Cat6A specifications. 26 AWG conductors are securely mated with RJ45 plug to deliver superior performance.
CAT 6A STP Patch Cord
High Speed 10 Gigabit STP Patch Cable Grey, LSZH, C6A delivers optimal transmission and networking performance with reduced insertion loss and Alien Crosstalk. They are high performance components available in broad range of lengths and designed to meet or exceed all Cat6A specifications. 26 AWG conductors are securely mated with RJ45 plug to deliver superior performance.
CAT 6A UTP Patch Cord
High Speed 10 Gigabit U/UTP Patch Cable Grey, LSZH, C6A delivers optimal transmission and networking performance with reduced insertion loss and Alien Crosstalk. They are high performance components available in broad range of lengths and designed to meet or exceed all Cat6A specifications. 26 AWG conductors are securely mated with RJ45 plug to deliver superior performance.
CAT 6 UTP CABLE - PVC
High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Rip Cord and PVC Outer Jacket. These Structured Cable Suitable for Gigabit Ethernet (1000Base-T) Requirement for Applications such as High Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Indoor Applications. This cable guarantees Category 6 performance ensuring maximum network speed, data throughput and efficiency.
CAT 6 UTP CABLE ‐ FRPVC
High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Rip Cord and FRPVC Outer Jacket. These Structured Cable Suitable for Gigabit Ethernet (1000Base-T) Requirement for Applications such as High Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Indoor Applications. This cable guarantees Category 6 performance ensuring maximum network speed, data throughput and efficiency.
CAT 6 UTP CABLE ‐ LSZH
High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Rip Cord and LSZH Outer Jacket. These Structured Cable Suitable for Gigabit Ethernet (1000Base-T) Requirement for Applications such as High Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Indoor Applications. This cable guarantees Category 6 performance ensuring maximum
network speed, data throughput and efficiency.
CAT 6 UTP OUTDOOR CABLE ‐ PE
High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Rip Cord and PE Outer Jacket. These Structured Cable Suitable for Gigabit Ethernet (1000Base-T) Requirement for Applications such as High Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Outdoor Applications. This Cable Guarantees Category 6 Performance Ensuring Maximum
Network Speed, Data Throughput and Efficiency.
CAT 6 UTP ECCS ARMORED CABLE
High Speed Gigabit Ethernet UTP 250MHz ECCS Armoured Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, PVC Inner Sheath, Electrolytic Chrome-coated Corrugated Steel Tape Armouring covered with PE Outer Sheath. This cable offers superior Electrical performance meeting 1000Base-T requirement. Armoured cables can be used for wide range of industrial environments/application that requires no signal drops or interference.
CAT 6A U‐UTP CABLE ‐ LSZH
High Speed 10Gigabit Ethernet U-UTP 500 MHz Class EA / Category 6A LSZH Cable is produced using HDPE Insulated 8 x 23 AWG Solid Bare Copper Conductors. This Cable comes with special filler designed for enhanced performance transmission of high speed data. The twisted pairs are covered with LSZH Outer Sheath. It supports 10/100/1000Base-T, 155Mbps ATM, IEEE 802.3an (10GBase-T) Standard.
CAT 6A FTP CABLE ‐ LSZH
High Speed 10Gigabit Ethernet FTP 500 MHz Class EA / Category 6A cable Consists of HDPE Insulated 8 X 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Aluminum / Polyester Tape shielding and LSZH Outer Jacket. It supports 10/100/1000Base-T, 155Mbps ATM, IEEE 802.3an (10GBase-T) Standard.
CAT 6A SFTP CABLE ‐ LSZH
High Speed 10Gigabit Ethernet S-FTP 500 MHz Class EA / Category 6A LSZH Cable is produced using 8×23 AWG Solid Bare Copper Conductors. Every pair is separately shielded – pairs in metal foil (PIMF). The twisted pairs are covered with a braided screen (S/FTP) which guarantees outstanding shielding properties and then LSZH Outer Sheath. It supports 10/100/1000Base-T, 155Mbps ATM, IEEE 802.3an (10GBase-T) Standard.
